Blue Nomad

Blue Nomad is an initiative of students at Institut auf dem Rosenberg and developed by Pioneer Ventures in collaboration with SAGA Space Architects. It is a self-sufficient solar floating habitat showcasing a fossil-free future for living and travelling on the ocean. To address climate change, rising sea levels, and contemporary nomadism, Blue Nomad provides a small, comfortable, and permanent living space that is powered purely by solar power.

london design biennale & Monaco energy boat challenge

Blue Nomad was invited to exhibit at the London Design Biennale 2023 at Somerset House. The opening saw exhibitors from 40 countries. Subsequently, Blue Nomad was exhibited at the Yacht Club de Monaco at the Energy Boat Challenge to showcase our solar traveling vision to the boating industry.

Co-created with Institut auf dem Rosenberg

During the development of Blue Nomad, our design process has been used to promote experiential learning in primary and secondary education. Students from K-12 of Institut auf dem Rosenberg, Switzerland, have engaged in multiple creative workshops to develop the design while being taught design skills.

Solar Travel

Blue Nomad relies purely on solar energy for propulsion, electricity, fresh water making, and driving its electrical motor. When sailing on solar energy, Blue Nomad has a range of 500km at a cruising speed of 4 knots and can be solar recharged in 39 hours. No need to be in a hurry when Blue Nomad is your permanent home.

Energy budget when solar
traveling using batteries

Energy budget when solar
charging the batteries

Render of blue nomad outrigger habitat from the front

A Naturally Grown Habitat

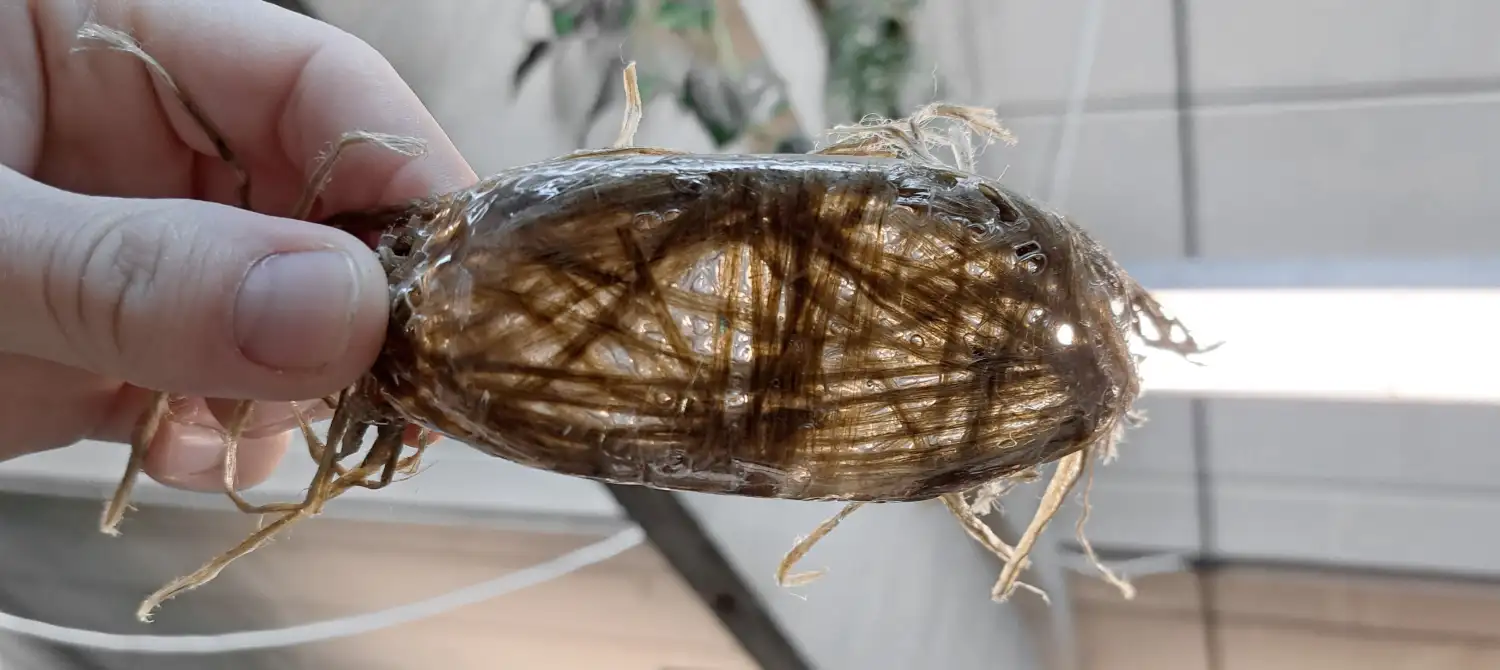

Blue Nomad is primarily constructed in flax fibers, showcasing a future of organic and regenerative materials. Flax is a naturally grown crop that can be spun into fibers for use in composite manufacturing. Imagine, growing your own habitat! To build with flax, the fiber is placed in a two-part mold and infused with bio-resin under a vacuum.

To realize Blue Nomad, we have partnered with Bcomp and Gurit, two leading producer of flax fiber and bio-resin.

Flax is a regenerative, organic, and carbon absorbing fiber compared to basalt fiber and carbon fiber.
Source: Bcomp

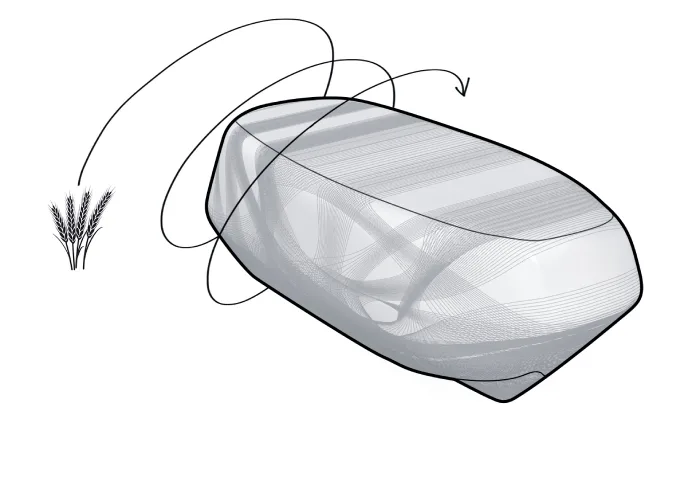

Animation of the flax weaves around the hull structure

Our ultimate vision is to realize Blue Nomad using a weave of flax fiber to make the hull strong where needed. The weave will apply a gradient of material in areas where forces are impacting and make up large windows.

Living Space

The interior focuses on providing a comfortable and compact living space, featuring a full kitchen with an aeroponics tower, a bathroom with self-generated freshwater, and beds for four nomads. The living space measures no more than 12m². The material choices prioritize sustainability, incorporating algal tiles, cactus leather, and aqua cork.

Render of the seating area, where an integrated bench surrounds a table in the middle

OCEAN GOING

Exterior dimensions:
6.7m long
4.8m wide

12m²

Interior dimensions:
6.5m long
2m wide

COURTYARD

Outdoor dimensions:
4m²

LIFE SUPPORT SYSTEMS

5.3 kWh Solar Panels
50kWh Battery Storage
E-Motor
Water Maker
300L Water Tank
AC Heat pump
Aeroponics Towers

Map of the maiden voyage route. The route is Copenhagen, Hamburg, Antwerp, Honfleur, London, Hull, EdinBurgh.

One Megawatt Maiden Voyage

The plan is to realize Blue Nomad in full-scale, with the prospect of embarking on a 3000 km maiden voyage across Europe. This journey will require 1MWh of solar energy exclusively. During this expedition, Blue Nomad will traverse seven countries. At each stop, local experts will be invited onboard to participate in a podcast discussing ocean sustainability.

60 DAYS

2967 KM

7 COUNTRIES

25 GUEST VISITS

1 PODCAST BROADCAST

BACKGROUND

SUN ENERGY

71% WATER

26% LANDMASS

3% URBAN

Every hour, the sun provides more energy to Earth than our entire population can consume in a year. With a growing population and rising sea levels, we aim to explore the oceans as a habitable space.

POLYNESIAN OUTRIGGER

Blue nomad

Blue Nomad draws inspiration from the first Polynesian Nomads, and strives to show we can go even further on renewable energy and organic materials to live on the ocean in a comfortable style.

DESIGN PROCESS

01. SHAPED FOR ROUGH SEAS

02. OCEAN STABILITY

03. FULLY SOLAR POWERED

04. OUTDOOR COURTYARD

05. FLAX FIBER STRENGTH

06. READY TO GO PLACES

DESIGNED TO BE SEAWORTHY

Each design iteration has undergone testing in computational simulations and in physical scale models. These methods have driven the design forward, enhancing its performance in water, and making the habitat safe for use on the ocean.
