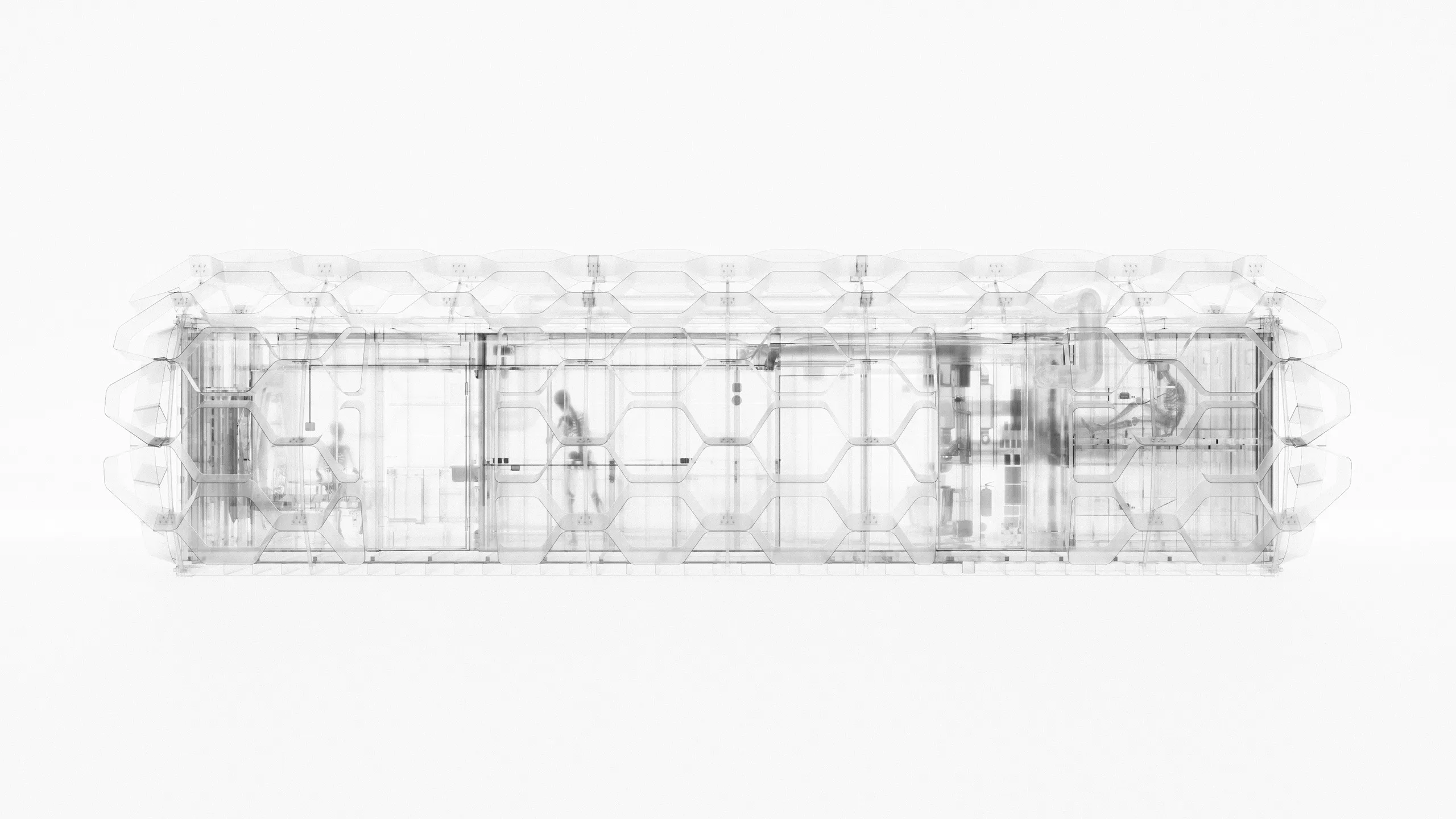

Render of FLEXHab

FLEXHab

This habitat is designed to train astronauts for Artemis missions at the European Space Agency (ESA) as part of the European Astronaut Center (EAC). The habitat supports medium to long-duration analog missions for a crew of four with state-of-the-art technologies for human well-being.

Render of FLEXHab interior

stimulating interior

The interior shows cutting-edge technologies for human well-being, including circadian lighting in every room, smart monitoring, and high-performance textiles for a home-like environment. Parts of the interior is 3D-printed in upcycled waste wood.

The habitat is designed to operate in both closed-loop and non-closed-loop modes, providing flexibility and resilience in various operational scenarios. The design emphasizes ease of maintenance, longevity, and to ensure reliability and ease of replacement.

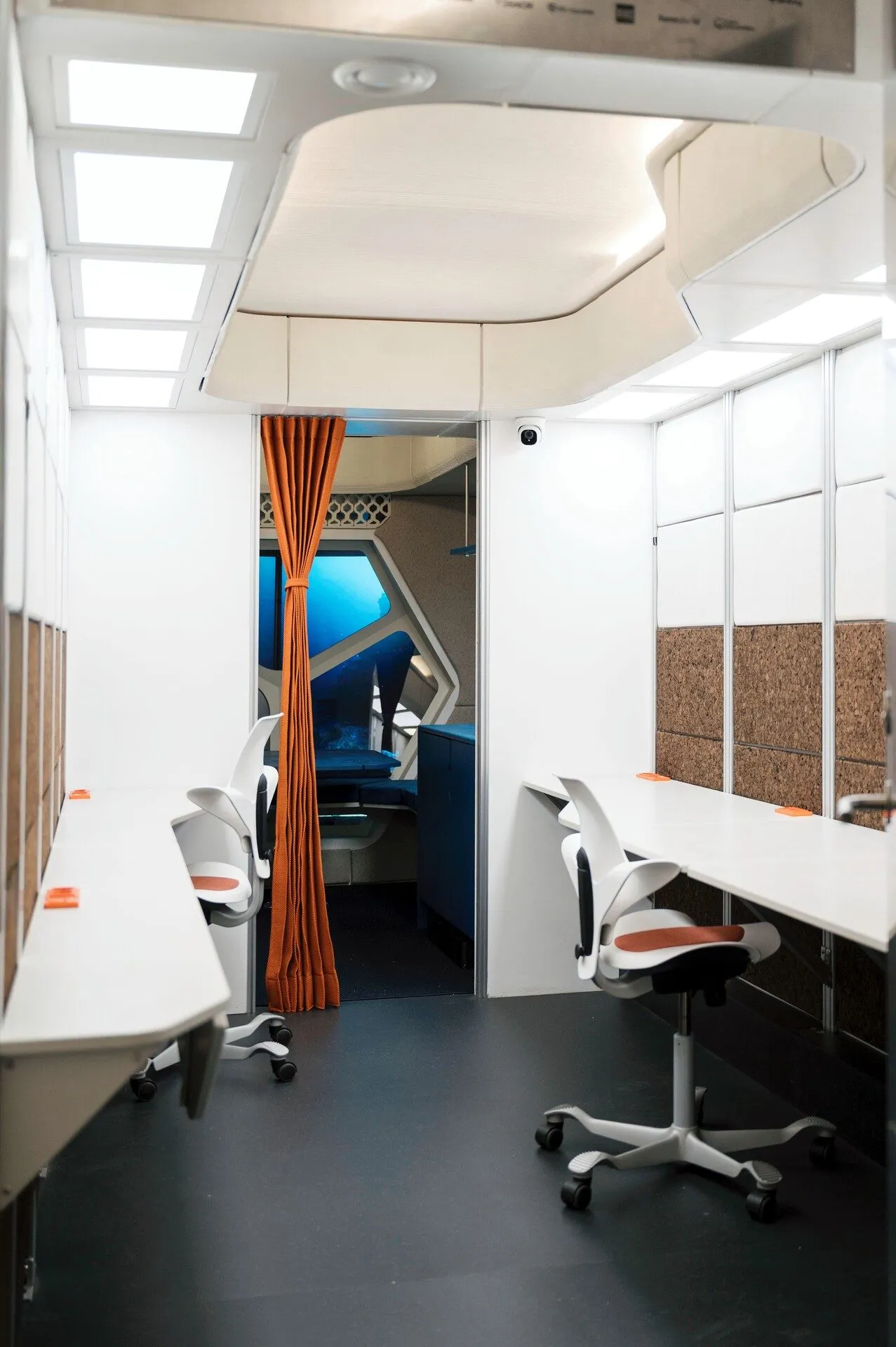

The lab features desks for experiments and MCS communication hardware. A foldable, height-adjustable desk adds flexibility. Space is reserved for future ISPR and Postbox modules.

Diagram of FLEXHab interior

Galley

Food storage and preparationDynamic seating and dining tableExercise machineCircadian Lighting

Lab

Work desksStorageComputer terminalCommunication terminalCircadian LightingReserved area for Postbox & ISPR upgrade

Airlock

Airlock for habitat entry/exitHygiene room (toilet/shower/sink)Equipment storageEntirely spray washable surfacesSpace for installing suitportCircadian Lighting

Sleeping cabins

Personal storage compartmentNoise reductionWell ventilatedIndividual light controlCircadian Lighting

Galley

The galley serves as the crew's leisure area, equipped with Alcantara Vegan Suede benches, a stowable dining table, cabinets for storage, and a well-equipped kitchen. A cupola with hidden TVs simulates the lunar landscape through animations. The galley converts into a workout area with stored workout machines. Two air-conditioning units controls the habitat climate control, both controllable with an individual IR remote.

Render of FLEXHab galley
Render of FLEXHab airlock

air & watertight airlock

The airlock doubles as a hygiene room to optimize space, serving as the main entrance for compression and decompression simulations. Designed as a wet room, it includes a dry toilet, sink, and a suitport station for spacesuit access. The airlock can be hosed down to prevent dust contamination between EVA missions.

Render of FLEXHab sleeping cabins

Comfortable sleeping cabins

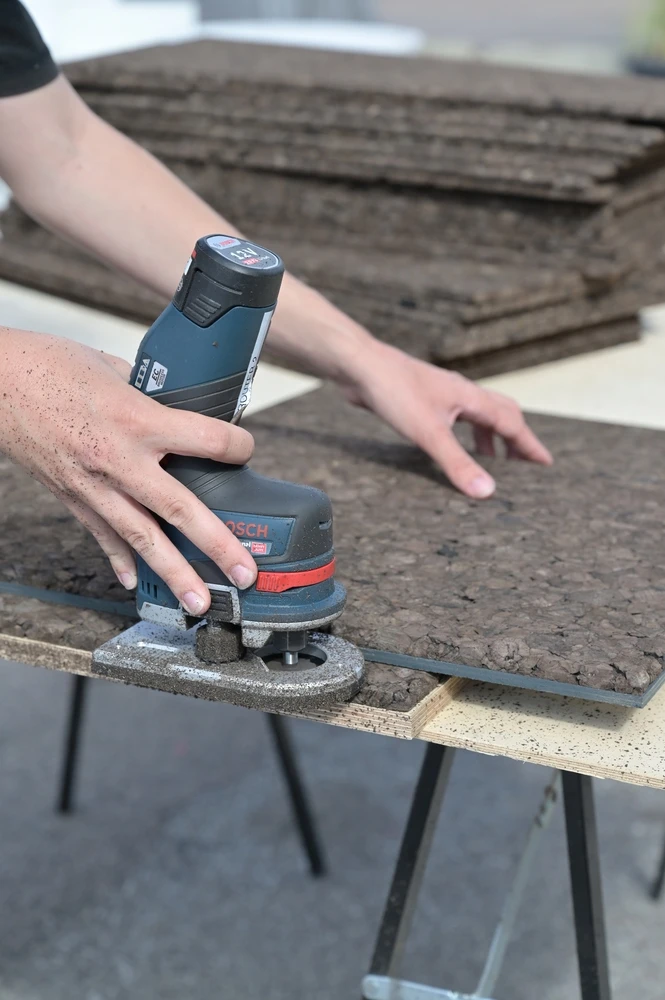

The sleeping cabins are designed for being quiet, featuring four ventilated and acoustically insulated capsules with ECHOJAZZ acoustic panels, storage, and sliding doors that can be kicked open in emergencies.

Crew
4 people
Size
28m²
Exterior dimensions
13x4m
Base structure
40ft high-cube container
Compression
Airtight
Building technology
3D-print

Plan

Floorplan of FLEXHab

Section A-A

Cross section of FLEXHab, Section A-A

Section B-B

Cross section of FLEXHab, Section B-B

Section C-C

Cross section of FLEXHab, Section C-C

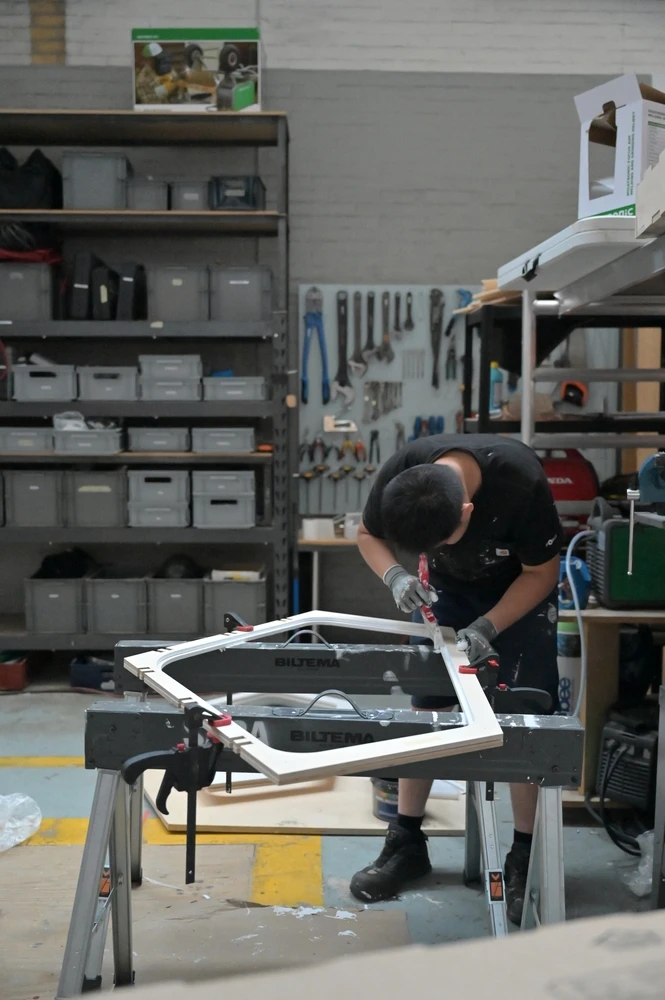

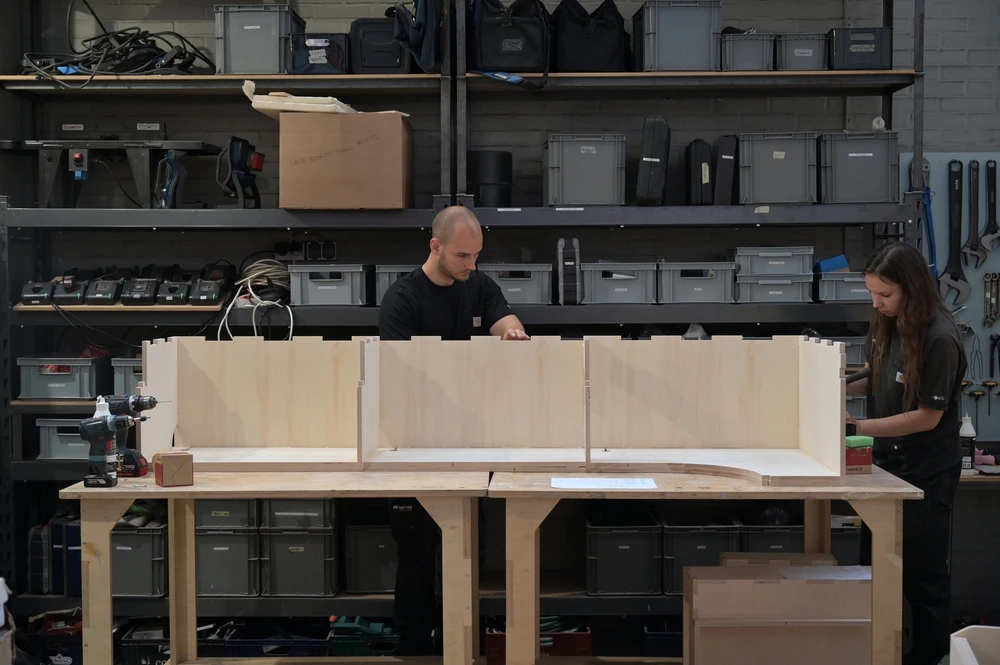

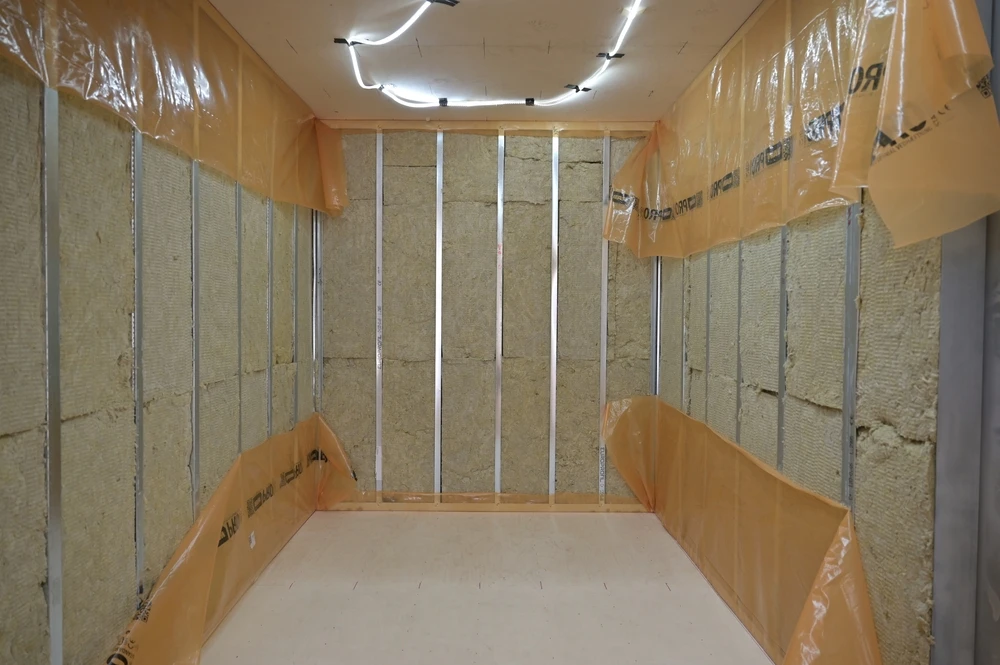

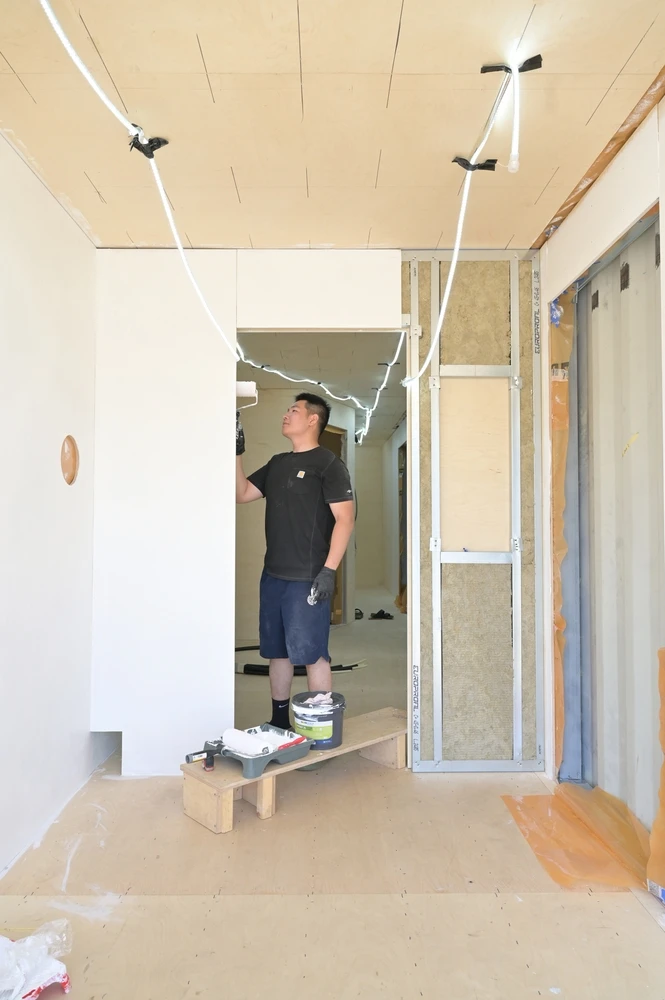

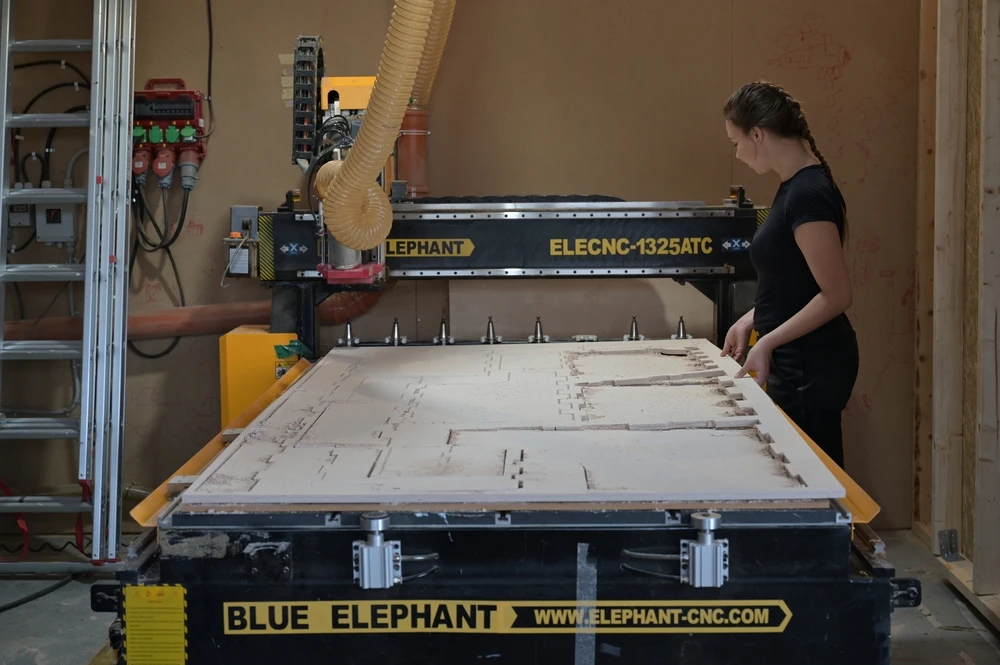

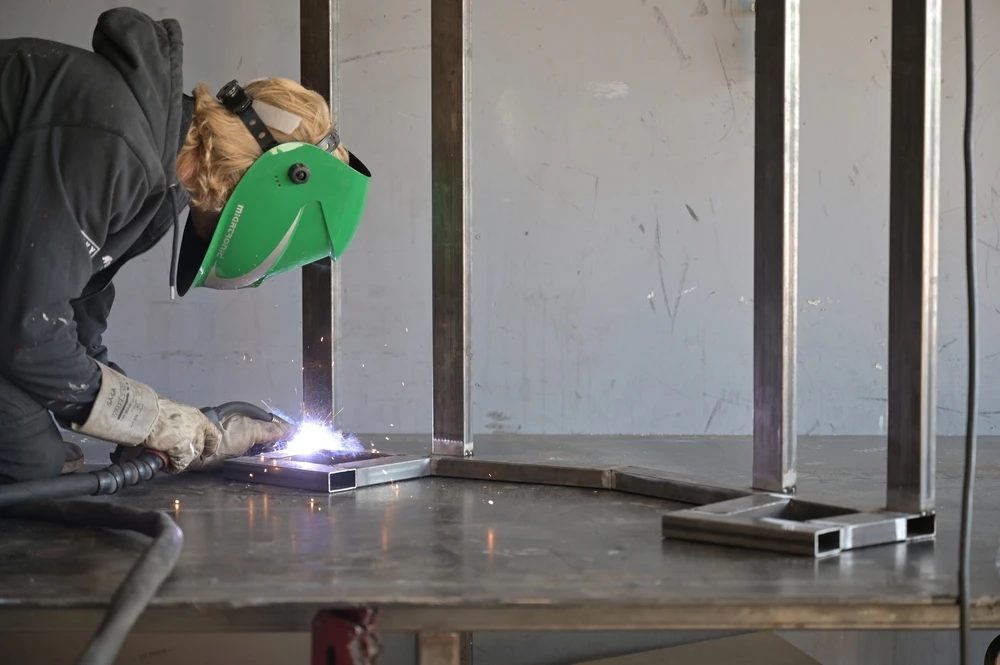

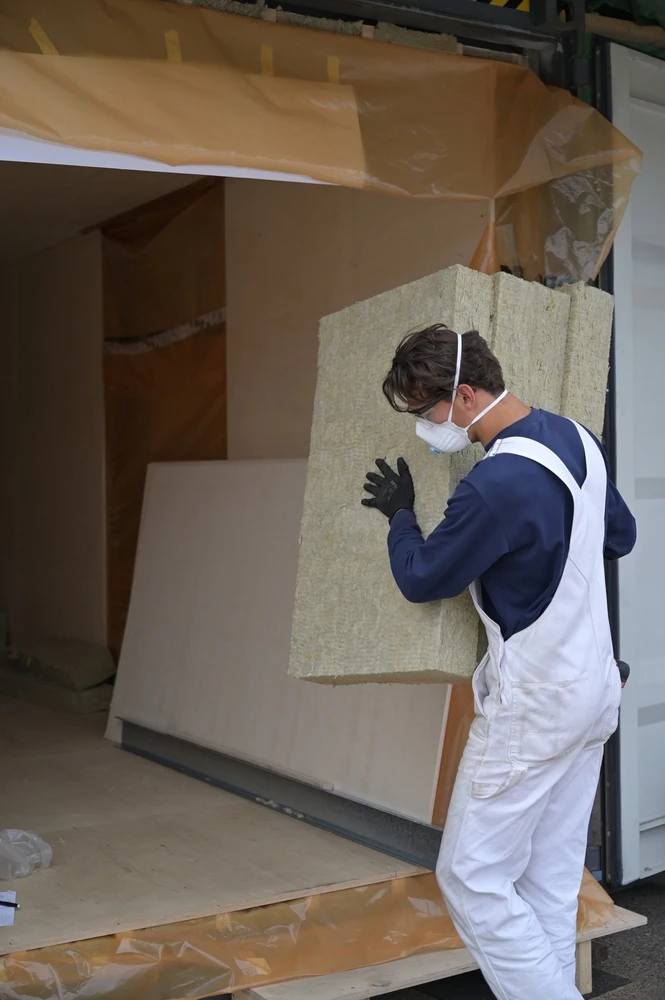

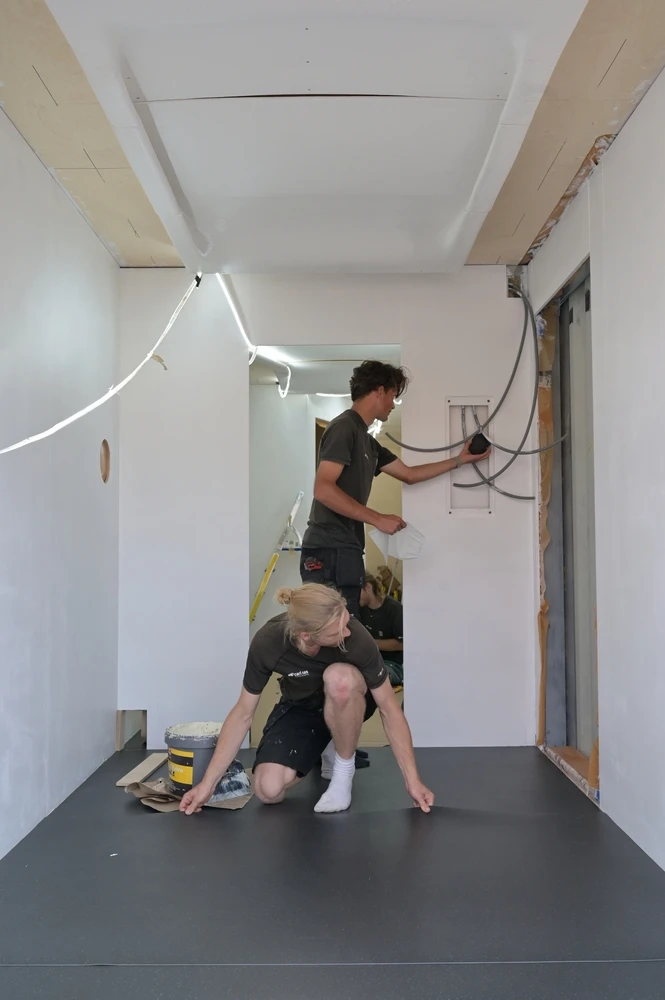

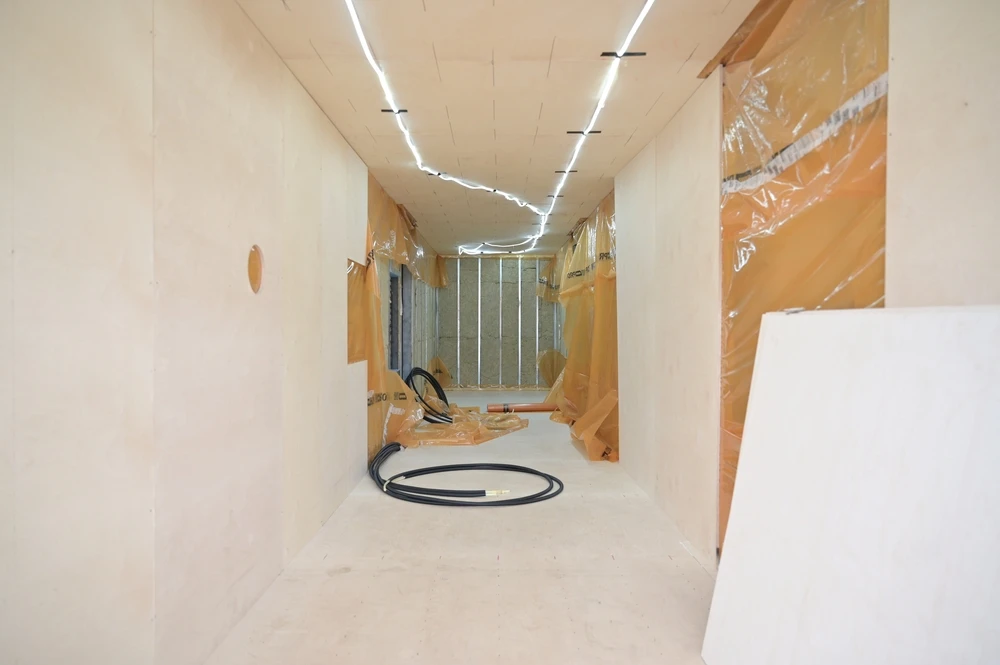

Designed and built in-house

The entire habitat, from the first idea to the final bolt, has been designed and built in our studio and workshop in Copenhagen.

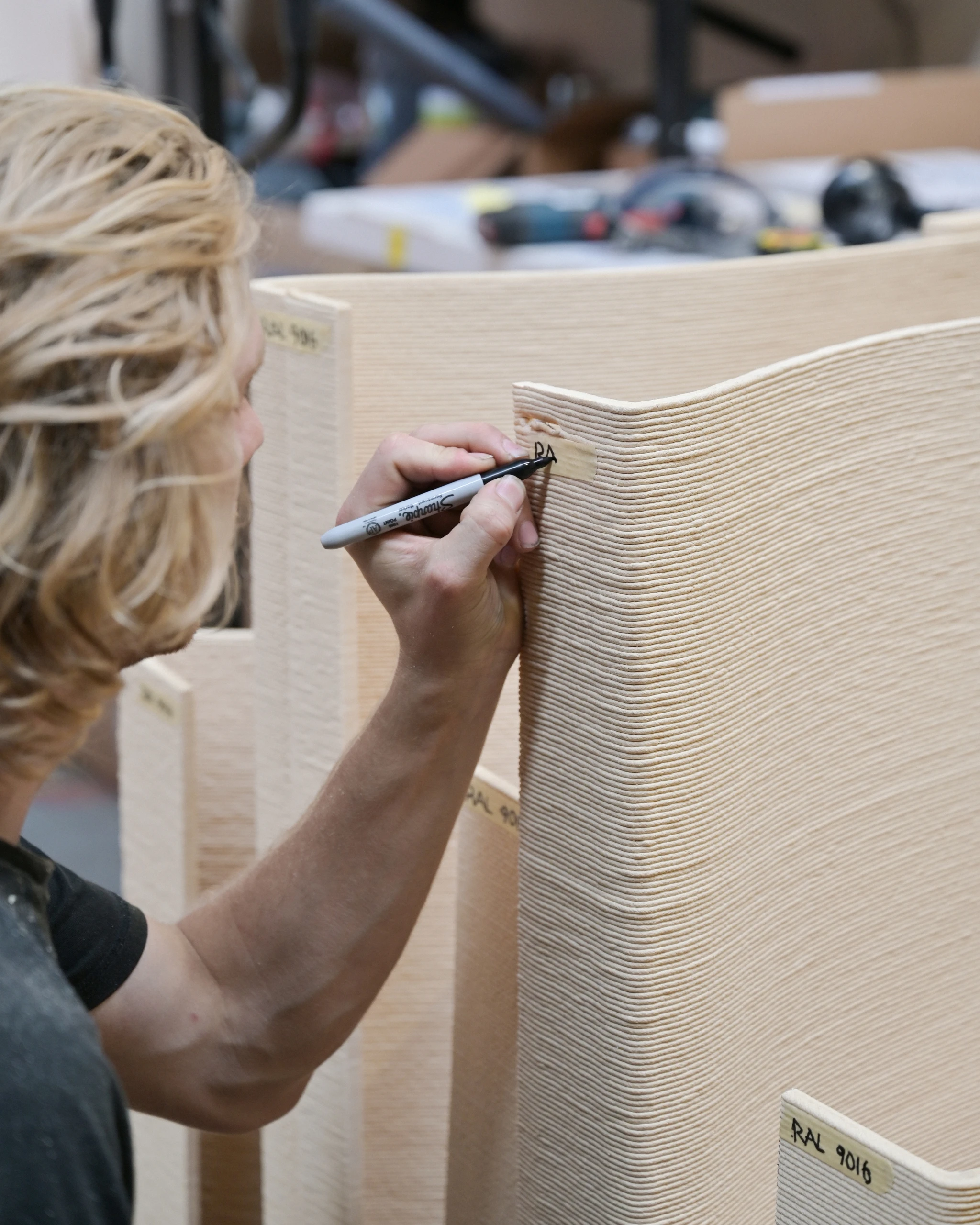

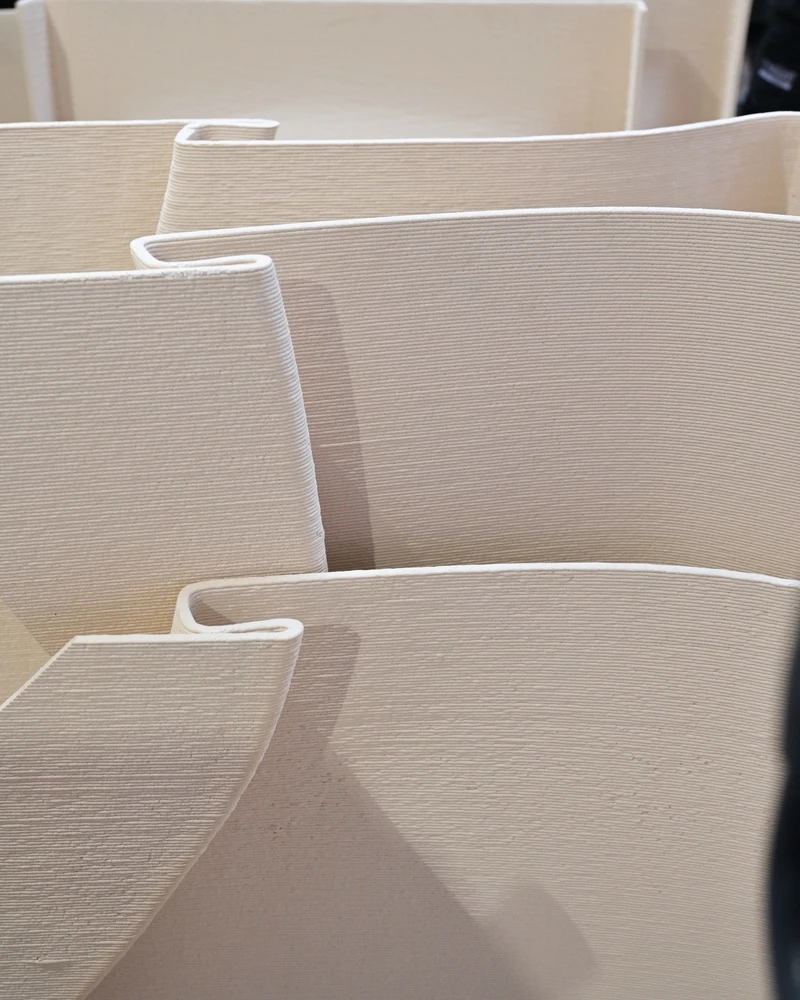

Large parts of the interior is 3D-printed by Wohn in Denmark using a special polymer-composite made of PP and 40% Wood fibers supplied by Woodcomposite Sweden AB. The 3D-printed interior includes the entire ceiling allowing hidden circadian lighting feature, the cabinet fronts and more.

3d-printed facade

The habitat is a pre-fabricated structure designed for easy on-site installation and transportation. It is based on a modified high-cube 40ft container, offering a simple yet strong base envelope with enough interior volume. The 3D printed facade mimics the silhouette of the habitat as it would look on the Moon's surface including bulkheads. The diameter is 4 meters. The facade is made out of glass fiber reinforced polymer, which is coated for added weather resistance.

Render of FLEXHab exterior
Render of FLEXHab exterior

An intelligent home

ODIN, SAGA's habitat operating system, runs on the main computer and serves as a central hub connecting all devices and systems in the habitat. It supports communication with the upstream MCS-L, stores local data, and provides dashboards for crew access, alerts, and configurable automations.

The habitat includes SAGA's RAVEN, an environment sensor for data-driven smart homes, along with live cameras, circadian lighting, and touch displays for monitoring data, conditions, and custom lighting. The system offers personalized control and data display while interfacing with the MCS.

Chart showing wavelengths of circadian lighting

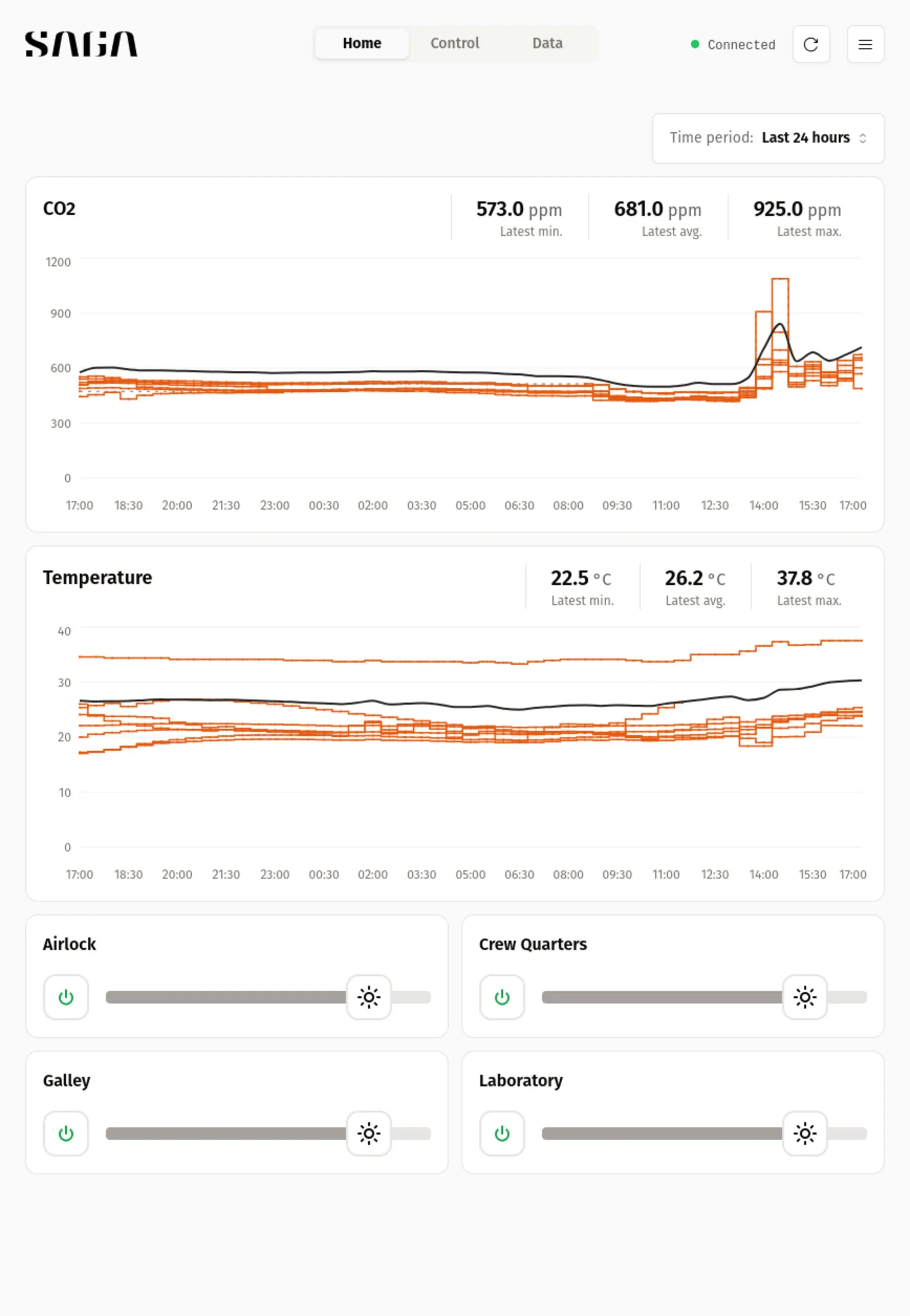

Mockup showing Odin dashboard
